Product details
- Intel E830-CCAM1
- 1x 200G QSFP56
NEW
Overview

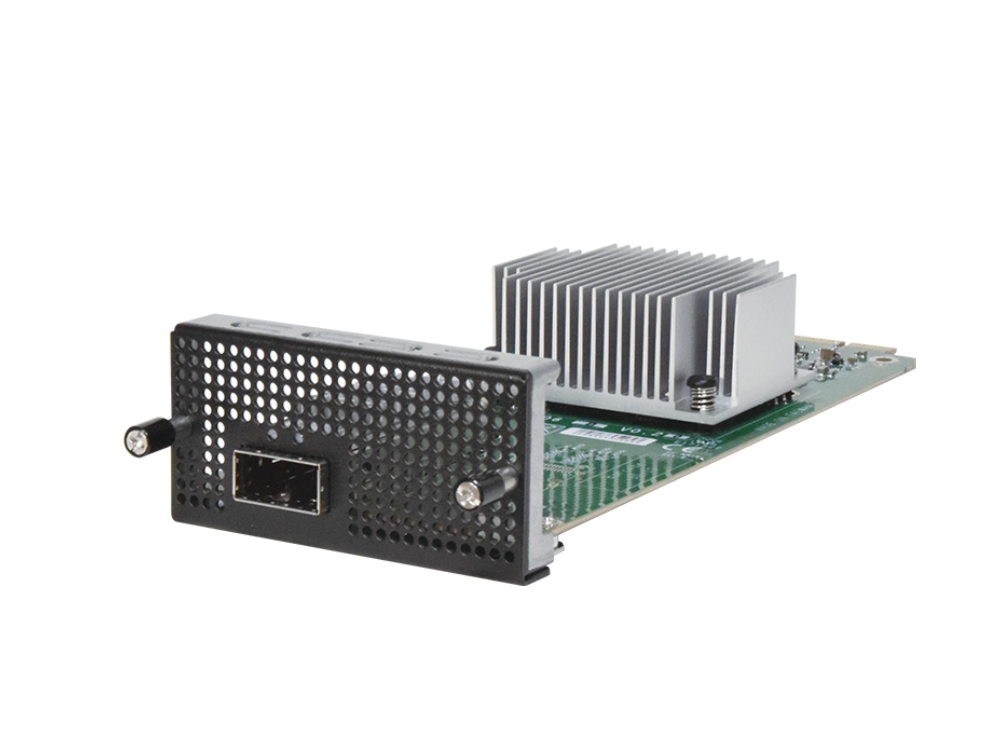

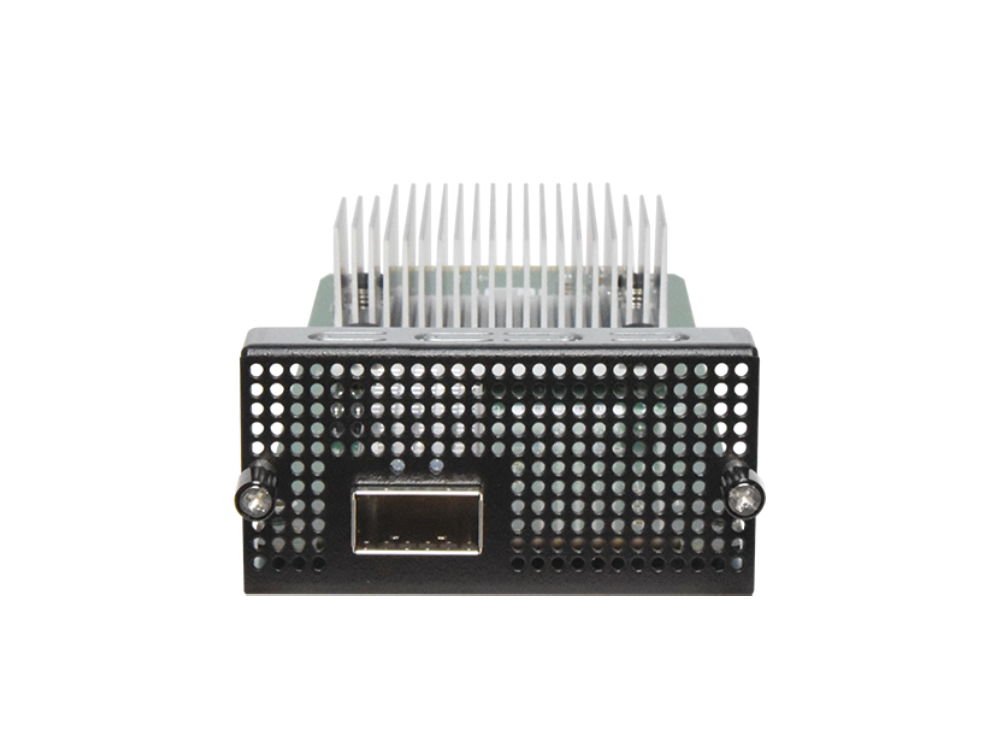

The NCS2-IDM101, built with Intel E830 Series (Connorsville) Ethernet controller, features 1x 200G QSFP56 port.
Specifications
| PCB | |
| IH206 | |
| Chipset | |
| E830-CCAM1 | |
| Interface | |
| 1x Gen5 PCIex8 Golden Finger With Gen5 PCIex8 Signal | |
| Connector | |
| 1x 200G QSFP56 (NCS2-IDM101A) | |
| System Compatibility | |
| Lanner x86 Appliance | |
| Temperature | |
| Operating | 0~40ºC |
| Storage | -40~70ºC |
| Humidity | |
| 5%~90%. Non-condensing | |
| Mechanical | |
| Dimension (W x D x H) | 77.2mm x 215mm x 39mm |
| Weight | 227g |
| Certifcation | |
| CE | Class A |
| FCC | Class A |
Order Information
| NCS2-IHM206A | Intel E830-CCAM1, 2x 100GbE QSFP56 Ports, Slim-type Module |
| NCS2-IDM101A | Intel E830-CCAM1, 1x 200GbE QSFP56 Port, Slim-type Module |
All product specifications are subject to change without prior notice
