Product details
- Intel® Arc™ Pro B60
- 24GB GDDR6 Memory
NEW
Overview

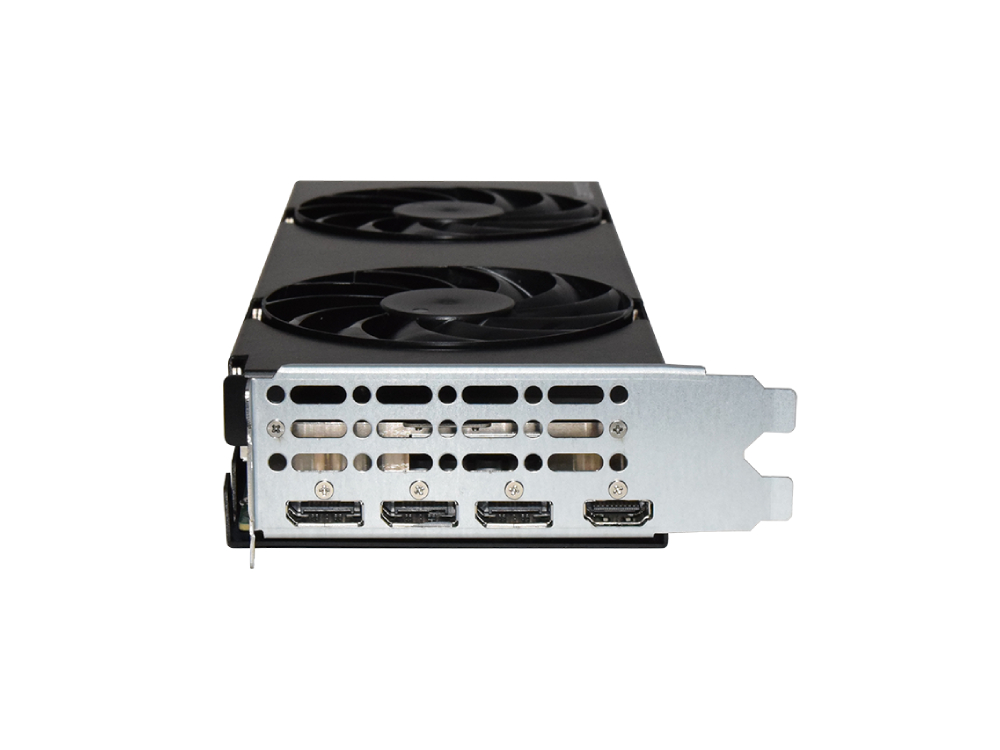

Lanner AV-DG301 is a dual-slot GPU solution powered by the Intel® Arc™ Pro B60, designed for AI-accelerated workloads. It supports 24GB of dedicated memory and connects through PCIe 5.0 x16 for high-speed performance. Featuring multi-GPU LLM support and 160 XMX AI engines, the AV-DG301 delivers advanced capabilities for agentic AI, video transcoding, AI-powered security and other edge AI applications.
Specifications
| Platform | |
| GPU Chip | Intel® Arc™ Pro B60 |
| Xe Cores | 20 |
| Ray Tracing Units | 20 |
| Intel Xe Matrix Extensions (Intel XMX) AI Engines | 160 |
| Memory Size and Type | 24GB GDDR6 |
| Memory Interface | 192-bit |
| Memory Bandwidth | 456 GB/s |
| Graphics Clock | 2400 Mhz |
| GPU Peak Tops (Int8) | Up to 199 |
| Total Board Power | 200W |
| PCIe | PCIe Gen 5 x16 FHFL |
| Cooling | |
| Processor | Active/Passive Cooling |
| System | Fan (by SKU) |
| Environmental Parameters | |
| Temperature | 0ºC ~ 40ºC Operating 0ºC ~ 40ºC Ambient storage |
| Humidity (RH) | 5% ~ 90% Operating 5% ~ 95% Non-Operating |
| System Dimensions | |
| Dimension (H x W) | 272 x 115 mm |
| Weight | TBD |
| Package Dimensions | |
| Dimensions (WxDx H) | TBD |
| Weight | TBD |
| OS | |
| Windows | Windows 10, Windows 11, Linux |
| Certification | |
| EMC | CE, FCC Class A |
All product specifications are subject to change without prior notice
